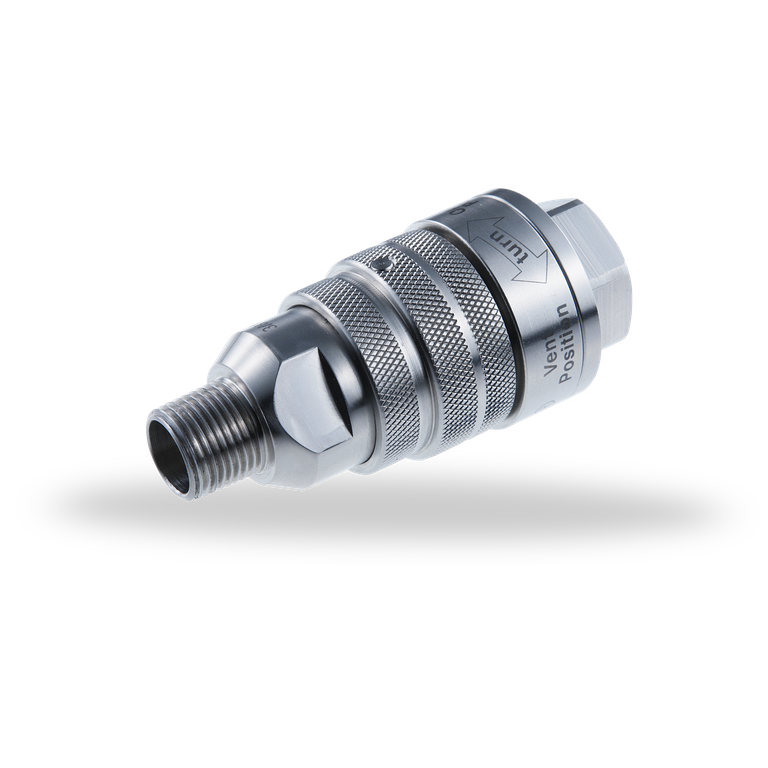

BestFlow
Features
Advantages
- Reduced, minimum barrier water consumption depending on the seal temperature
- Easy installation and use: no additional connection lines needed
- Venting in horizontal and vertical mounting position
- Long-term assurance of the functionality of the expansion element thanks to its physical and chemical properties
- Rugged, fatigue-free moving parts
- No temperature peaks during opening and closing of the valve thanks to the thermosensitive expansion element
- No power supply required (Ex-protection)
- Pressure-balanced component; pressure fluctuations have no effect on the BestFlow; controlled solely via temperature
Recommended applications
- Pulp and paper industry
- Chemical industry
- Water and waste water technology
Functional description
Notes
Product variants
| Designation | BestFlow-3/8 NPT-60 | BestFlow-3/8 NPT-82 |
|---|---|---|
| t3 out | 60 °C (140 °F ) | 82 °C (180 °F ) |
| p3 max | 16 bar (232 PSI) | 16 bar (232 PSI) |
| p3 - p1 = Δp | min. 2 bar (29 PSI) | min. 2 bar (29 PSI) |
| Process connection | 3/8" NPT | 3/8" NPT |
| Metal parts | 1.4571 Brass |
1.4571 Brass |
| Seal | Viton® or EPDM | Viton® or EPDM |
Other connection dimensions on request.
Similar products

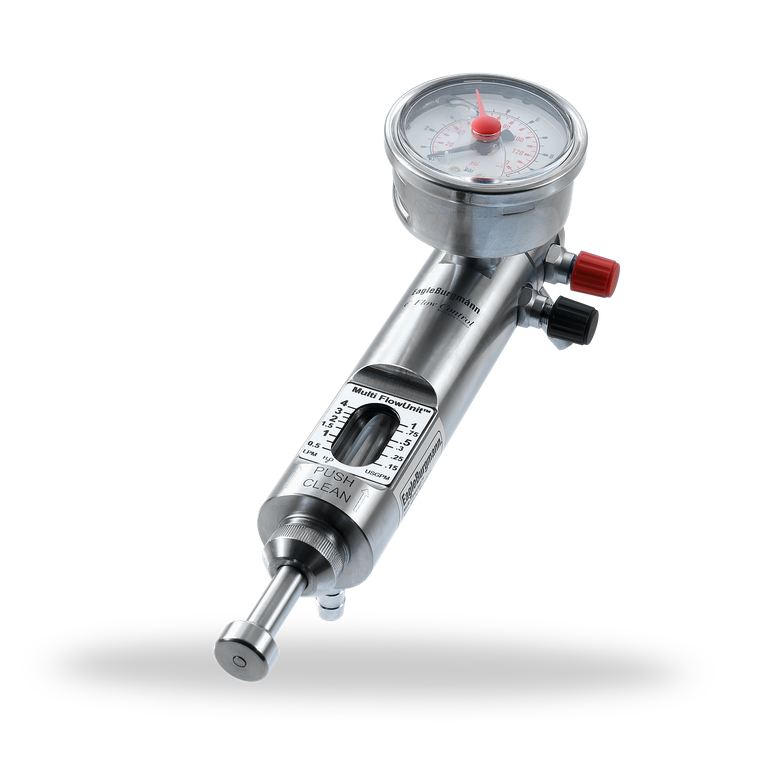

MFU Multi Flow Unit
MFU-MP: for single seals with flush
MFU-MQ: for seals with quench
MFU-MD: for double seals
These are available for different indicated flow ranges and with numerous system components (e.g. mounting supports, stands, hoses, alarm sensors, etc.) and other material combinations.
Circulation in accordance with API 682 Plan 32, Plan 54, Plan 62.
Inquire about individual solutions
We develop and produce customer-specific special and individual solutions for every application.
