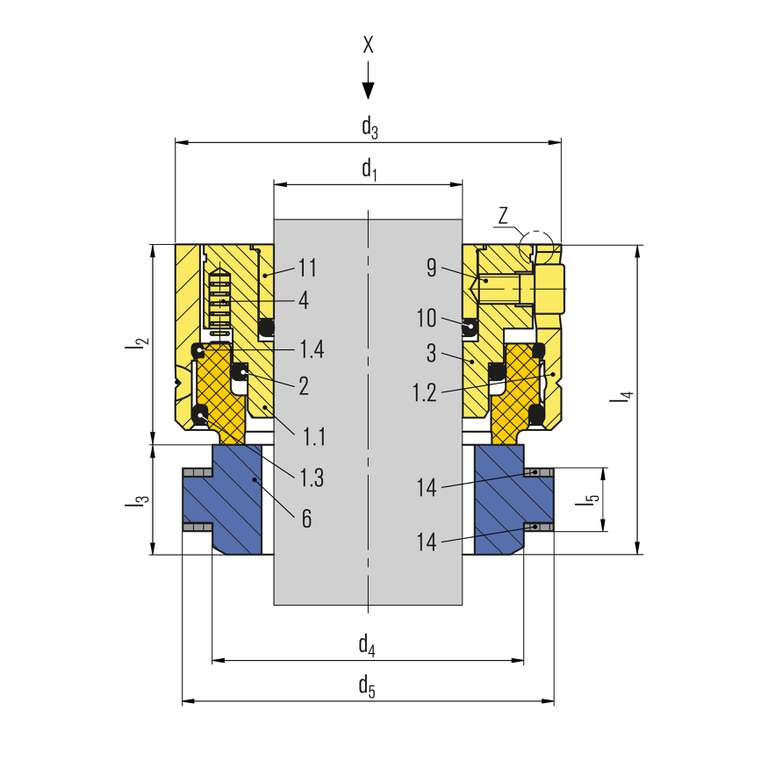

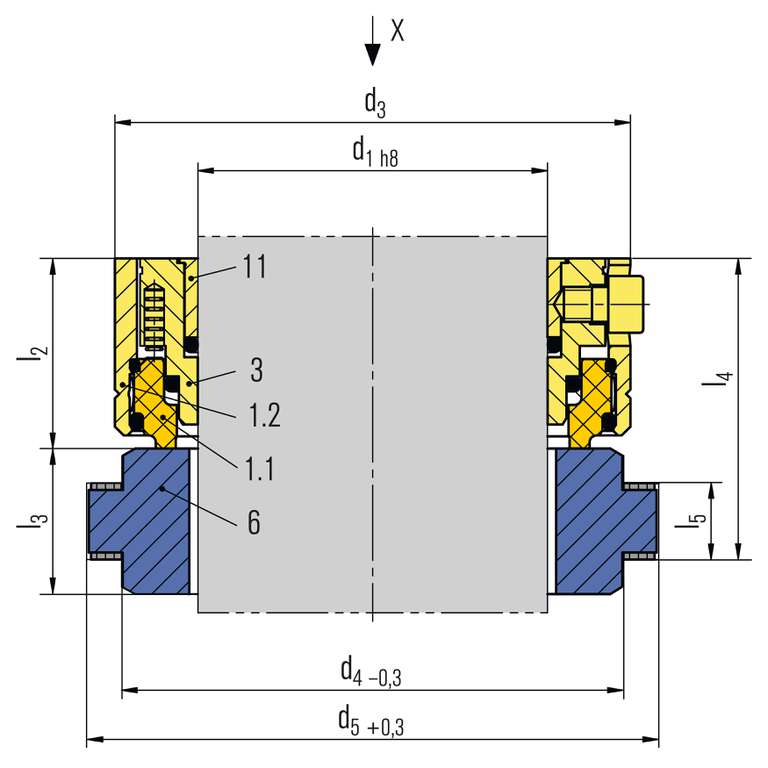

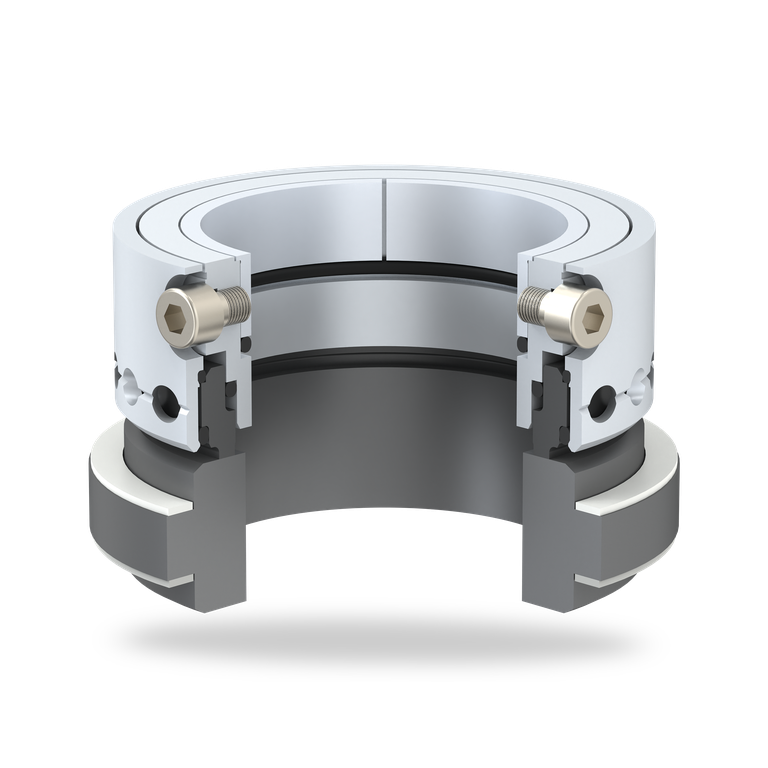

SeccoMix1-E32
3 Drive collar
6 Seat
11 Clamping ring
SeccoMix1-E32
Features
- Retrofit for JC Type 32
- Dry-running single seal
- For top entry drives, on request side drive possible
- Balanced
- Outboard mounted
- Multiple springs rotating
- Independent of direction of rotation
Advantages
- Available as semi-cartridge
- No supply system required
- No product contamination with barrier fluid
- Low wear due to optimized seal face load
- Suitable for vacuum operation
- Friction-locked connection to the shaft
- ATEX certification available on request
- Inherently safe, even without temperature monitoring
Operating range
Pressure: p1 = vacuum ... 6 bar (87 PSI)
Temperature: -20 °C ... +200 (250*) °C
(-4 °F ... +392 (482*) °F)
Sliding velocity: vg = 0 ... 2 m/s (0 ... 6 ft/s)
Axial movement: ±1,5 mm
Radial movement: ±1,5 mm
Materials
Seat: Silicon carbide
Secondary seals and metal parts according to application and customer's specifications.
Standards and approvals
- FDA
- ATEX
Recommended applications
- Chemical industry
- Pharmaceutical industry
- Food an beverage industry
- Non-toxic media
- Agitators
- Mixers
- Reactors
Similar products
AD510 / AD520
- Dry running
- Single seal
- Independent of direction of rotation
SeccoLip461
- For top entry drives, on request for side and bottom entry drives
- For glass-lined vessels
- Dry-running
- Modular and flexible design
- Compensation of shaft deflection by patented technology
- Independent of direction of rotation
- Cartridge unit
SeccoLip481
- For top entry drives, on request other drives possible
- Dry-running
- Modular and flexible design
- Compensation of shaft deflection by patented technology
- Independent of direction of rotation
- Cartridge unit
Inquire about individual solutions
We develop and produce customer-specific special and individual solutions for every application.
